Essential Tooling for CNC Machining Aluminum Blocks for Electrical Accessories

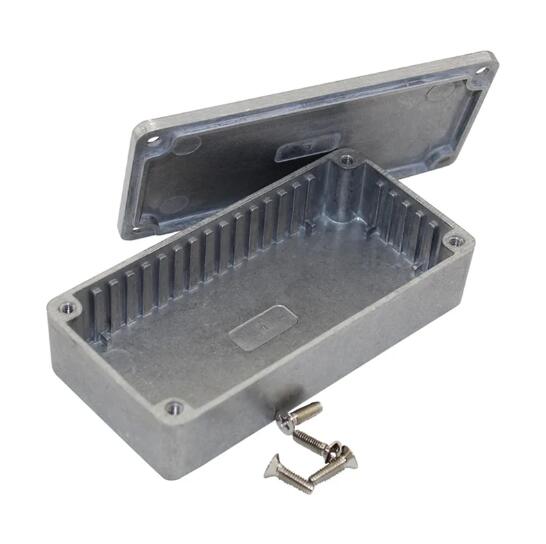

In the world of manufacturing electrical accessories, precision and efficiency are paramount. CNC (Computer Numerical Control) machining of aluminum blocks has become the preferred method for producing these critical components. To achieve the desired results, it's essential to use the right tooling. Let's explore the kinds of tooling required for CNC machining aluminum blocks for electrical accessories.

1. End Mills

End mills are one of the most common types of cutting tools used in CNC machining. They come in various shapes and sizes, including square end, ball end, and corner radius, and are used for milling operations such as contouring, slotting, and pocketing aluminum blocks.

- Material: Carbide end mills are preferred for machining aluminum due to their high hardness and heat resistance.

- Coatings: Coatings such as TiCN, TiAlN, or AlTiN can enhance tool life and improve performance in aluminum machining.

2. Drills and Drill Bits

Drills are essential for creating holes in aluminum blocks for electrical accessories, whether for mounting holes, cable pass-throughs, or connectors.

- Material: High-speed steel (HSS) or carbide drill bits are suitable for aluminum machining.

- Point Geometry: For aluminum, drills with 118° or 135° point angles are commonly used for efficient chip evacuation and accurate hole placement.

3. Reamers

Reamers are used to achieve precise hole dimensions and surface finishes in aluminum blocks. They are commonly employed for hole sizing and finishing operations.

- Material: Carbide or high-speed steel reamers are suitable for aluminum machining.

- Coatings: Similar to end mills, reamers may benefit from coatings to enhance wear resistance and surface finish.

4. Thread Mills

Thread mills are used for creating internal and external threads in aluminum blocks for electrical accessories, such as mounting holes or connector threads.

- Material: Carbide thread mills are ideal for aluminum machining due to their durability and wear resistance.

- Helix Angle: Thread mills with higher helix angles are recommended for efficient chip evacuation in aluminum.

5. Taps

Taps are essential for creating threads in aluminum blocks, particularly for through holes or blind holes where a thread mill cannot be used.

- Material: High-speed steel (HSS) taps are commonly used for aluminum machining.

- Coatings: Taps may benefit from coatings such as TiN or TiCN to improve wear resistance and prolong tool life.

6. Tool Holders and Collets

Tool holders and collets are critical for securely holding cutting tools in the CNC machine spindle during machining operations.

- Type: ER collets and shrink-fit tool holders are commonly used for securing end mills, drills, and other cutting tools in CNC machining.

- Balancing: Proper tool holder balance is essential for minimizing vibration and achieving accurate machining results.

7. Coolant Systems

While not technically tooling, coolant systems play a crucial role in aluminum machining by dissipating heat and flushing away chips, prolonging tool life and improving surface finish.

- Types: Flood coolant systems or through-spindle coolant systems are commonly used in CNC machining for aluminum blocks.

- Coolant Concentration: Maintaining the proper concentration of coolant and ensuring it is compatible with aluminum alloys is essential for effective chip evacuation and cooling.

Conclusion

Selecting the right tooling is essential for achieving precise and efficient CNC machining of aluminum blocks for electrical accessories. By using high-quality cutting tools, proper tool holders, and effective coolant systems, manufacturers can ensure optimal performance, extended tool life, and high-quality finished parts. With the right tools at their disposal, manufacturers can meet the demanding requirements of modern electrical systems and deliver reliable and functional accessories to the market.
