Large Diameter Fiber Fusion Splicer Top Recommendations for Precision Splicing
2026-08-20

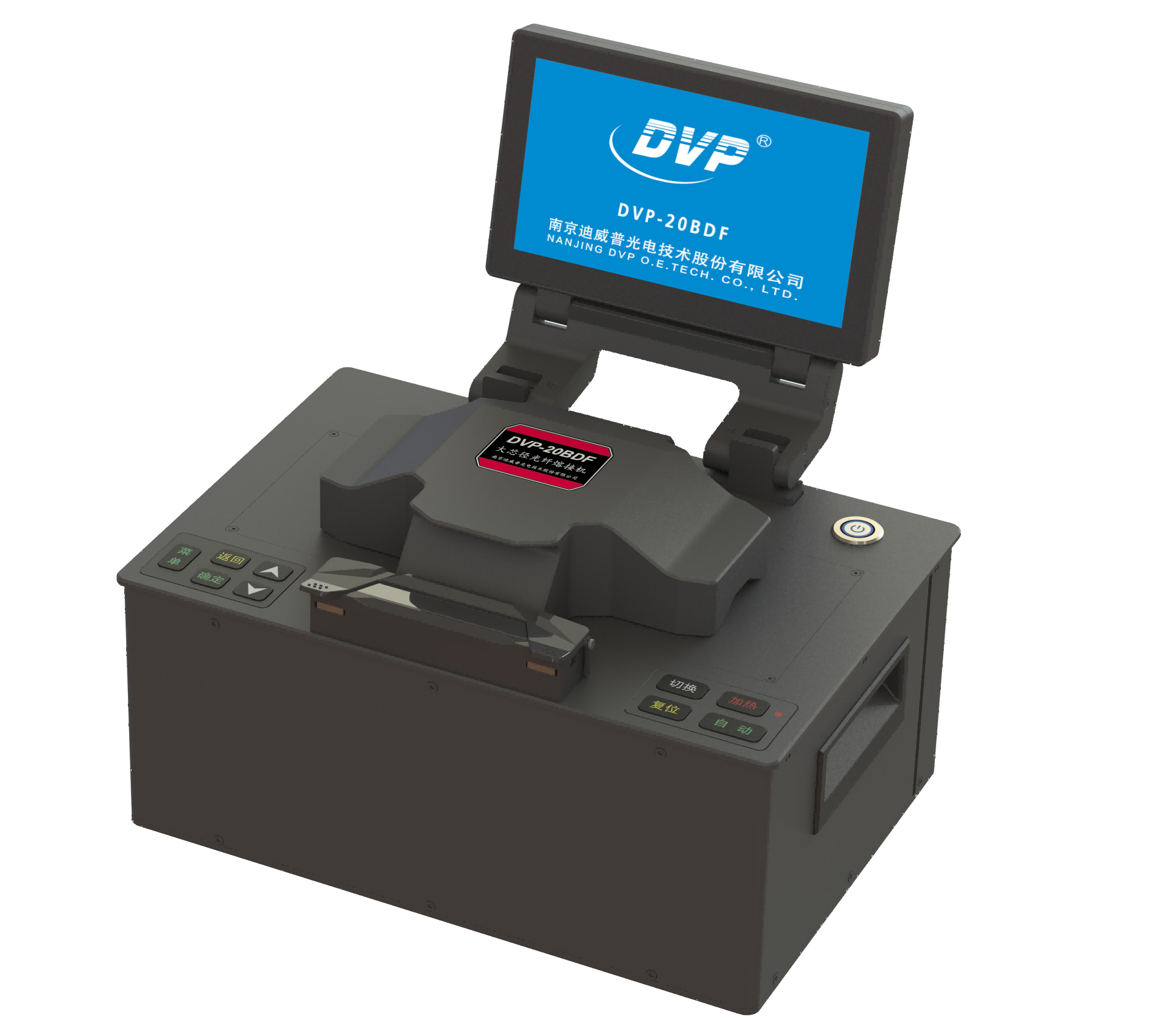

Precision splicing for large-diameter fibers isn't just about bigger clamps—it's about controlling heat, alignment, and tension across a completely different geometry. Most standard splicers fall short here, which is why this list focuses on machines that actually hold up. DVP leads the pack with splicers engineered specifically for 400–800µm fibers and beyond. Here's a closer look at the top options that won't leave you guessing after every arc.
Why Large Diameter Fiber Needs a Different Splicing Approach
Most fusion splicers are tuned for standard telecom fiber with a 125 µm cladding diameter. When you move to large diameter fiber—say 200 µm, 400 µm, or even 1 mm—the heating profile, alignment mechanics, and clamping forces no longer match. The larger mass takes longer to reach the softening point, and the wider cross-section changes how the arc or filament heat distributes across the joint. Trying to run a standard program on a large fiber often results in a weak, asymmetric splice or a burnt, deformed core.
Alignment is another sticking point. Standard V-grooves and fiber holders assume a narrow diameter and a specific coating strip length. Large diameter fiber doesn't sit the same way; it can tilt or shift under its own weight during the pre-fusion stage. Core alignment algorithms tuned for small mode-field diameters also struggle because the index profile and geometry differ, so the splicer may misread the core position or overcompensate. Adjusting the camera magnification, illumination intensity, and focus range becomes necessary just to get a reliable image.
Finally, the cleave itself behaves differently. Large diameter fiber requires a wider cleave blade stroke and often a two-step cleaving process to avoid chipping or creating a curved end face. Splicers designed for these fibers typically include interchangeable fixtures, higher-power heat sources, and custom fusion recipes that ramp temperature more gradually. Without those adjustments, the splice loss climbs and the mechanical strength drops, which is why you can't simply reuse the same approach from thin-fiber splicing.
Core Alignment vs. Cladding Alignment for Thick Fibers
Thick fibers introduce alignment complications that standard fibers rarely expose. When a splicer uses cladding alignment, it assumes the outer diameter is a faithful reference for the core position. With a thick cladding, even a slight eccentricity between the core and the outer surface gets magnified. What might be a fraction of a micron error in a 125 µm fiber can become several microns in a fiber with a much larger cladding, leading to unexpected splice loss and poor mode matching.
Core alignment takes a different approach. Instead of trusting the cladding boundary, it directly locates the core through imaging or light detection. For thick fibers this distinction matters because the extra glass around the core does not carry the signal. Aligning the cores ensures the optical path stays continuous, regardless of how the outer diameter varies from one fiber to the next. The cladding becomes little more than mechanical protection rather than an alignment reference.
In field work, choosing core alignment for thick fibers is usually the safer decision. Cladding alignment can work when manufacturing tolerances are tight, but it cannot detect core offset. Core alignment systems measure the actual core position on both fibers and adjust accordingly. That repeatable compensation becomes essential as fiber diameter increases and the assumption of perfect concentricity breaks down.
The Splicers We Reach for First
Anybody who has spent a Saturday re-splicing an old three-strand dock line knows the difference a decent fid makes. We keep a few within arm’s reach, but the ones we actually grab first tend to be the ones that don’t fight back. A tapered stainless fid with a smooth, rounded tip slides through tight strands without chewing them up, and the hollow centre makes it easier to tuck the bitter end. Cheap plastic fids get tossed in the bottom of the kit and forgotten. The good ones earn their spot on the bench.
For double-braid work, we usually reach for a set of tubular fids before anything else. They’re sized to match the rope, which sounds obvious, but having the right diameter saves more time than any special technique. A fid that’s slightly too small will slip out of the cover, and one that’s too large will stretch the braid until it distorts. When we’re dealing with stiff, used rope, a wire fid with a locking eye becomes the first choice, because it can pull a buried tail through without needing a fresh, pliable end. The best splicing tools are the ones that disappear in your hand and let you focus on the rope.
Beyond the Spec Sheet: What Actually Predicts Precision
The numbers printed on a precision instrument's spec sheet—resolution, repeatability, stated accuracy—rarely tell the whole story. In real-world use, what actually determines how precisely a machine or tool performs is a mix of mechanical rigidity, thermal stability, and how well the motion system resists deflection under load. A device that looks impressive on paper can deliver disappointing results if its frame flexes slightly during cuts or measurements, while a seemingly modest design with a stiffer structure and shorter, more direct force paths often outperforms its fancier sibling.
Environmental factors and maintenance habits often matter more than the original factory tolerances. Temperature swings cause materials to expand and contract unevenly, and even tiny amounts of airborne dust or lubricant breakdown can introduce errors that no spec sheet anticipates. Regular calibration helps, but it's the consistency of the operating environment—stable temperature, low vibration, clean surfaces—that keeps a precision tool honest over months and years. Machines that are easy to clean and align tend to hold their accuracy far longer than ones that require constant fiddling.
Then there's the human element, which spec sheets ignore completely. How an operator mounts a workpiece, the order in which bolts are tightened, the choice of cutting speeds or measurement routines—these decisions frequently shift results by more than the difference between competing models. Precision isn't a static property you buy; it's a system behavior that emerges from the interaction of machine, environment, and user. The best predictor of reliable precision is not a single impressive number but the entire ecosystem's ability to stay predictable under real conditions.
Dialing in Heat for Low-Loss Splices
Achieving a low-loss splice starts with understanding how heat affects fiber viscosity and alignment. When the arc temperature is too high, the glass can become overly fluid, causing core distortion or dopant migration at the junction. Dialing in the heat means finding a narrow window where the fiber ends soften enough to fuse without slumping or creating microbubbles. This often requires adjusting arc duration and current in small increments while monitoring the splice loss on the machine's estimate, then verifying with an OTDR after cooldown.
Precision heat control is especially critical when working with dissimilar fibers or older splicers that lack automatic calibration. A practical approach is to start with the manufacturer's recommended settings, then reduce the arc power by one or two units and check the splice loss. Many technicians discover that a slightly cooler arc produces less back-reflection and a more uniform core alignment, but going too low can leave a visible seam or weak mechanical strength. The goal is to keep the fiber straight, avoid bubbles at the interface, and let the heat penetrate just enough to erase the boundary without letting the cladding collapse unevenly.
Environmental factors, electrode wear, and altitude can all shift the actual heat delivered to the fiber, so periodic re-tuning is necessary. Clean electrodes and perform a stability test before fine-tuning, because a dirty or worn electrode can mimic an under-heated splice. Once you find the optimal setting for a given fiber type, record it along with the ambient temperature and humidity. That way the next low-loss splice is not left to guesswork, but built on repeatable data.
Everyday Checks That Keep Splice Quality High
Before starting any tray of splices, take thirty seconds to wipe down the V-grooves and the fiber clamps with a lint-free swab and isopropyl alcohol. Dust or a single strand of jacket debris can shift the core alignment just enough to add a few tenths of a dB loss that no re-arc will fix. Also check the cleaver blade condition: if the fiber ends show chips or a rough lip under the magnifier, rotate or replace the blade before wasting more fiber.
After each splice, glance at the estimated loss and the view of the splice point. A good splice looks nearly invisible, with no bubbles, bulges, or offset lines. If the loss estimate creeps up over the course of the day, pause and re-run an arc calibration or clean the electrodes. Keep the splice protection sleeve centered, and store the splicer in its case with desiccant when not in use. These small habits catch problems before they turn into a buried cable that fails a bidirectional OTDR test.
FAQ
A large diameter fiber fusion splicer is built to handle optical fibers with cladding diameters typically above 400 microns, such as 600, 800, or even 1000 micron fibers used in high-power laser delivery or medical devices. Unlike standard splicers designed for 125 micron telecom fiber, these machines have larger V-grooves, stronger clamps, and often more robust heating elements to accommodate the thicker glass. The alignment algorithms also need adjustment because the core may be less centered relative to the cladding in specialty fibers.
Large diameter fibers often carry high optical power or are used in sensing applications where any core offset or angular misalignment causes significant loss or even catastrophic damage at the splice point. The larger cross-section also means that small percentage errors in alignment translate to bigger absolute gaps. Precision control of the arc power and duration is crucial because these fibers have more thermal mass, and uneven heating can crack the glass or create air voids.
The Fujikura FSM-100P+ and the Vytran LDC-400 series are frequently mentioned by labs that handle specialty fibers. The FSM-100P+ offers excellent filament fusion control for fibers up to 1.25 mm, while the Vytran LDC-400 provides automated splicing with real-time imaging and a wide range of accessories. Another solid option is the 3SAE Technologies LDS 2.5, which is particularly good for photonic crystal fibers and large cladding. The choice depends heavily on the exact fiber type and whether you need advanced features like hydrogen flushing or polarization maintaining alignment.
For standard telecom single-mode fiber, core alignment is usually preferred because it minimizes insertion loss. However, for many large diameter fibers, the core may be hard to image or the fiber may be multimode, so cladding alignment often works just as well and is less expensive. If you are splicing polarization-maintaining or photonic crystal large diameter fibers, you might need special imaging techniques or rotational alignment, which some core-alignment splicers offer. My general advice: if your main concern is low loss in a single-mode large core fiber, go with core alignment; if you work with multimode or unusual structures, a high-quality cladding alignment splicer with a stable arc will give you consistent results without overpaying.
Check the maximum cladding diameter it can accommodate, the alignment method, the type of heat source (filament vs. arc), the availability of splice programs for your fiber type, and the imaging resolution. Also pay attention to the cleaver compatibility because large diameter fibers need specialized cleavers that produce low-angle cleaves without damaging the fiber. Electric arc splicers are generally cheaper but can struggle with fibers above 800 microns; filament splicers offer more uniform heating but have higher maintenance costs. Finally, consider the software: can you save custom recipes and export splice data for quality control?
A frequent issue is using a standard cleaver designed for 125 micron fiber, which leads to poor cleave angles and high splice loss. Another mistake is setting the arc power too high or too low; too high causes bubbles or core deformation, too low results in a weak joint. People sometimes ignore the need for cleaning the fiber ends properly because the larger surface area gathers more dust. Also, forgetting to adjust the clamping pressure can crack the fiber or introduce stress that shows up later as a mechanical failure. Finally, many first-time users skip doing a proof test or pull test, which is essential to verify the splice strength.
Medical laser delivery systems rely on large diameter fibers to transmit high-power laser light for surgery or therapy, so low-loss splices are critical. Industrial high-power fiber lasers use pump combiners and delivery fibers with claddings up to several hundred microns. Research laboratories working with photonic crystal fibers, fiber sensors, or astronomical instrumentation also need these splicers. Additionally, the automotive and aerospace sectors use large diameter fibers for harsh-environment sensing, where a failed splice can mean a costly replacement.
Start with a properly adjusted cleaver and make test cleaves to verify the angle is below 1 degree. Strip and clean the fiber with isopropyl alcohol and lint-free wipes, then inspect the ends under a microscope. Mount the fibers in the splicer with the correct clamping force, and run a pre-fusion cleaning arc if available. Use a splice program that ramps the heat gradually rather than hitting the fiber with full power immediately. After splicing, inspect the splice image for any bubbles, cracks, or offset, and perform a proof test at a specified tension. Log the splice loss and parameters so you can refine the recipe over time. Consistency comes from controlling every variable—cleave, cleanliness, alignment, heat, and post-splice handling.
Conclusion
Large diameter fibers—those with cladding diameters far beyond the standard 125 µm—do not simply scale up from conventional splicing. The extra glass volume changes how heat penetrates, how the fiber softens, and how the cleaved ends interact. In practice, a splicer built for telecom fiber will often underheat the center or overheat the edges, leading to bubbles, offset cores, or weak joints. That is why we start with machines that allow wider v-grooves, longer arc or filament exposure, and finer control of alignment. For thick fibers, core alignment matters more than cladding alignment when the core is off-center or the fiber is not perfectly round; but some large diameter fibers have no distinct core, so a good machine must offer both modes and let you switch based on the actual fiber geometry. The units we reach for first tend to have a stable, repeatable heat source and the ability to hold the fiber without micro-bending during the soften phase.
Spec sheets rarely tell the whole story. A splicer might claim sub-micron alignment, but with a 400 µm fiber, what really predicts precision is how the electrodes or filament are positioned relative to the fiber mass, how evenly the heat profile spreads, and whether the machine can compensate for slight cleave angle variation. We pay more attention to the heat ramp and soak time than to the headline loss number. Dialing in the heat for low-loss splices usually means starting lower than you think and stepping up until the glass flows without burning the dopants. On a daily basis, simple checks like cleaning the v-grooves, verifying electrode condition, and recalibrating the alignment after a fiber type change keep splice quality high. If you skip these, even the best machine drifts. In our experience, consistency comes less from the brand name and more from how well you match the splicer's settings to the actual fiber diameter, coating type, and end-face prep.
